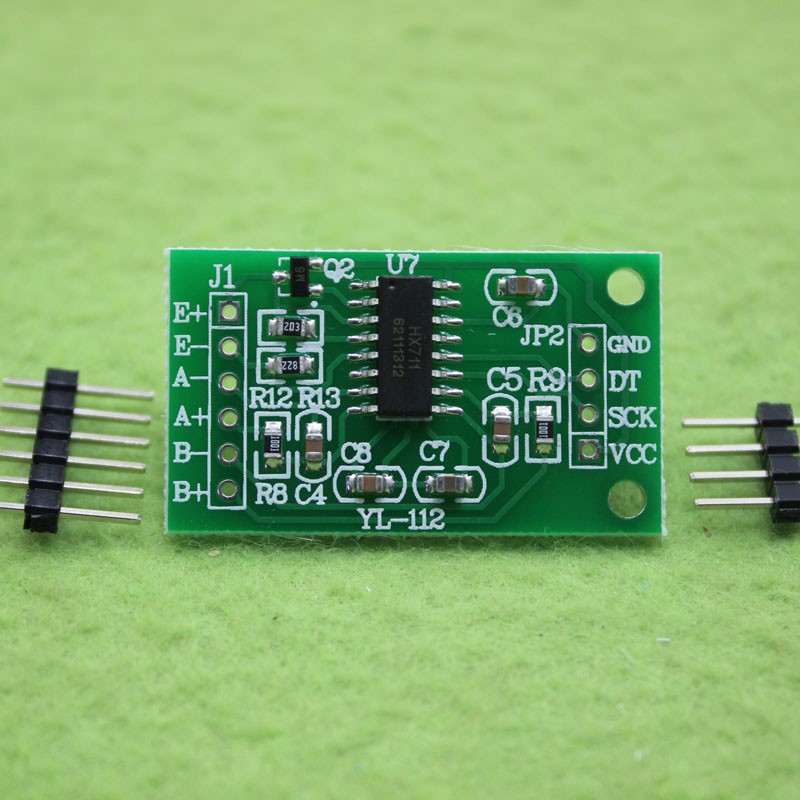

Hx711 Module Weighing Sensor Pressure Sensor 24bit Ad Module

Hx711 Module Weighing Sensor Pressure Sensor 24bit Ad Module

• Size:40mmx20mm/1.56"x0.79"(inch) (approx)
• This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module.
• Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85℃
