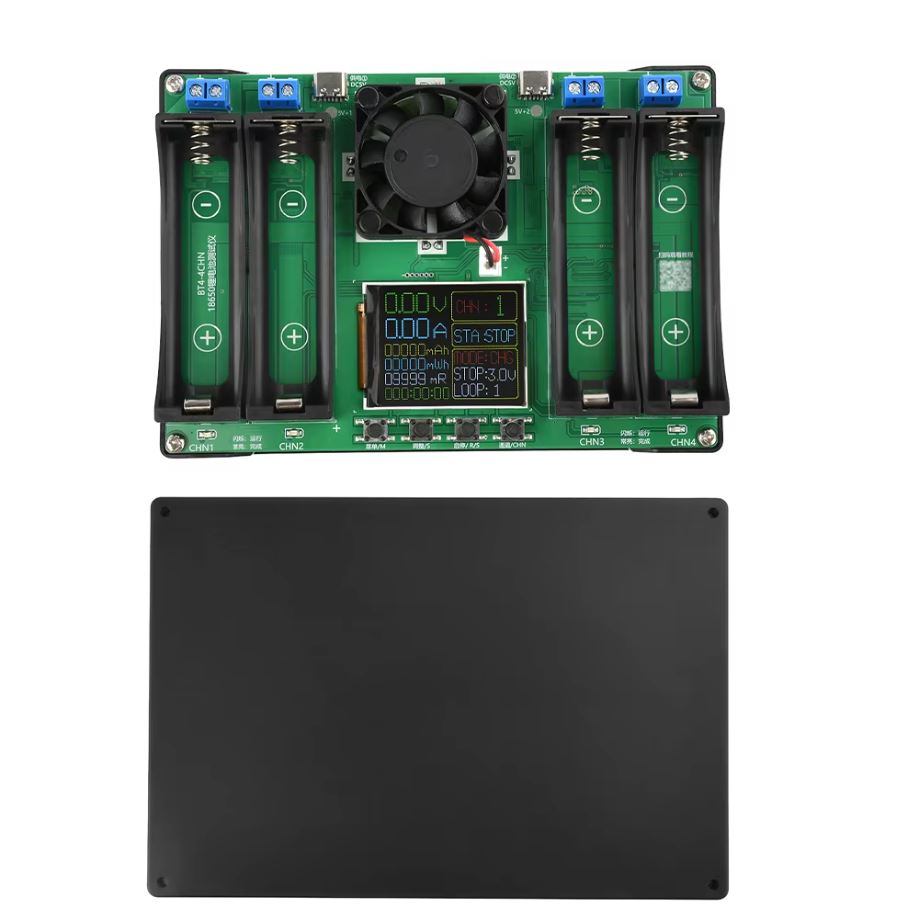

4 Channel Type-C LCD Display Modul Penguji Kapasitas Baterai 18650 Lithium Battery True Capacity Tester Module MaH mWh mR Resistance Charging Discharging

4 Channel Type-C LCD Display Modul Penguji Kapasitas Baterai 18650 Lithium Battery True Capacity Tester Module MaH mWh mR Resistance Charging Discharging

Product Description

Basic parameters：
Working power supply: DC5V (all to be provided by oneself)

Applicable batteries: Suitable for batteries that meet the requirements of stopping discharge voltage of 2.5-3.5V and charging at 4.2V. Power supply interface: dual Type-C interface, with self-contained power supply line (C-port mobile phone cable)

System language: English
Test quantity: 4 charging and discharging measurements
Internal resistance measurement: supported, using DC two wire method to test internal resistance
Charging function: supported, automatically cut off charging when fully charged, not suitable for charging lithium iron phosphate batteries
Discharge function: Supported, automatically stops when conditions are met
Automatic charging and discharging: supported. When the automatic mode ends, the battery is fully charged. It is not suitable for charging lithium iron phosphate batteries
Cyclic charging and discharging: supported, adjustable for 1-9 cycles
Status prompt: Supported

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V 11 adjustable levels of 3.3V, 3.4V, and 3.5V
Discharge current: maximum of about 1A current, not adjustable, not supported for independent modification
Heat dissipation method: active heat dissipation
High temperature protection: supported

Charging voltage: controlled by a dedicated battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power off save: only save the set parameters, not the measurement data
