MAX30100 Pulse Oximeter Heart-Rate Sensor Module
Referensi
P231-L2D15
ADA CACAT PRODUKSI PADA PCB, HARUS DI JUMPER TERLEBIH DAHULU
CEK DETAIL PADA GAMBAR
Stok 51
Rp. 15.000
MAX30100 Pulse Oximeter Heart-Rate Sensor Module
General Description: The MAX30100 is an integrated pulse oximetry and heart rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal
| Form Color | Green |
| Material | FR4 |
| Specification | |
|---|---|
| Application | Wearable Devices Fitness Assistant Devices Medical Monitoring Devices |
| Working Voltage | 1.8-3.3V |
| English Manual / Spec | Yes |
| Download Link | https://datasheets.maximintegrated.com/en/ds/MAX30100.pdf |
| Dimensions & Weight | |
|---|---|
| Dimensions | 0.75 in x 0.55 in x 0.12 in (1.9 cm x 1.4 cm x 0.3 cm) |
| Weight | 0.11 oz (3 g) |
| Packing List |
|---|
| 1 * MAX30100 Module |

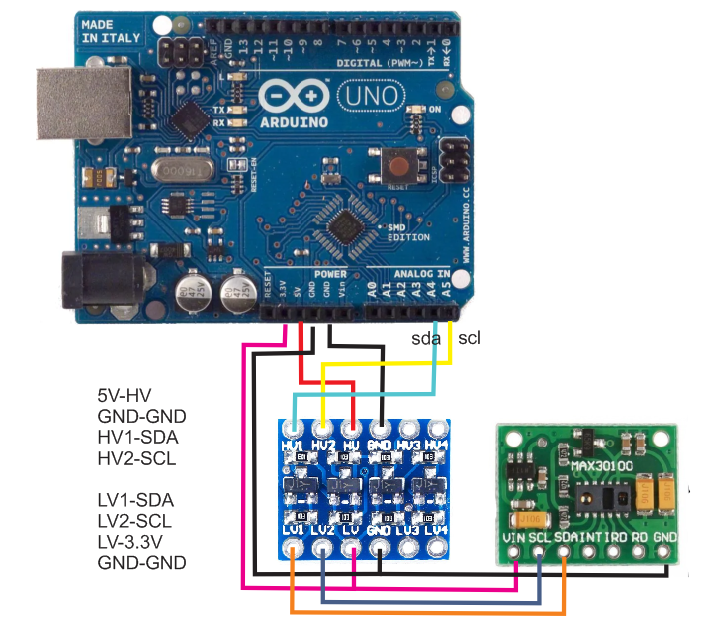

NOTE : Jika initializing failed maka gunakan logic level converter
contoh kasus click
LOGIC LEVEL CONVERTER beli disini
library click
cara test, buka MAX30100_Minimal Example
hapus "//" dari line dibwah ini
// pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA);
sehingga menjadi
pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA);
