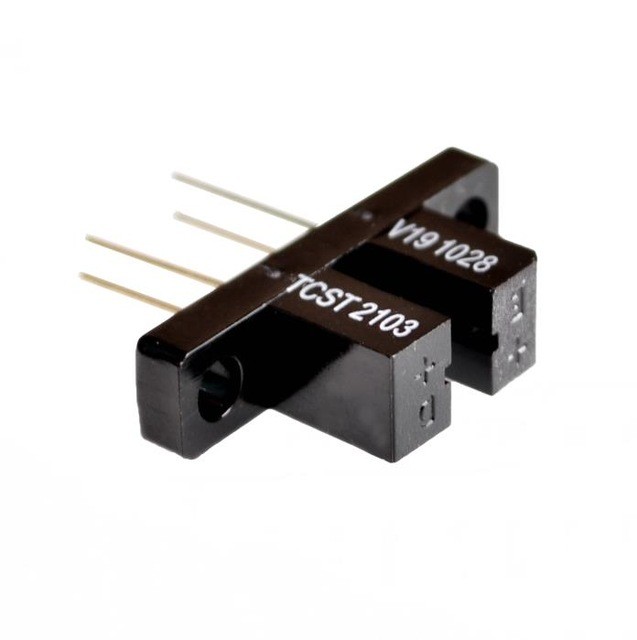

TCST2103 Transmissive Optical Sensor with Phototransistor Output

TCST2103 Transmissive Optical Sensor with Phototransistor Output

Features
• Package type: Leaded
• Detector type: Phototransistor
• Dimensions package
   24.5 mm x W 6.3 mm x H 10.8 mm
• Gap: 3.1 mm
• Typical output current under test: IC = 4 mA
(TCST1103/2103)
• Typical output current under test: IC = 2 mA
(TCST1202/2202)
• Typical output current under test: IC = 0.5 mA
(TCST1300/2300)
• Daylight blocking filter
• Emitter wavelength 950 nm
• Lead (Pb)-free soldering released
• Lead (Pb)-free component in accordance to RoHS
2002/95/EC and WEEE 2002/96/EC

Applications
• Optical switch
• Photo interrupter
• Counter
• Encoder

Datasheet : http://www.vishay.com/docs/81147/tcst2103.pdf
