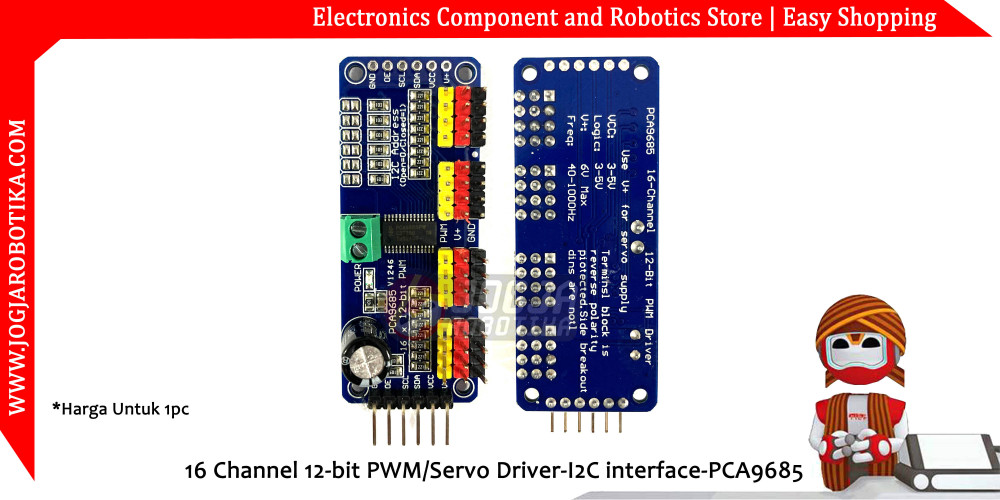

16 Channel 12-bit PWM/Servo Driver-I2C interface-PCA9685



9 item

Rp. 100.000

Rp. 70.000

-Rp. 30.000

JumlahHargaAnda menghemat
5 Rp. 67.000 Sampai dengan Rp. 15.000

16 Channel 12-bit PWM/Servo Driver-I2C interface-PCA9685

Feature :

  • It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
  • It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
  • 6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
  • Adjustable frequency PWM up to about 1.6 KHz
  • 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output
  • Output enable pin to quickly disable all the outputs

PCA9685 datasheet :


dokumentasi :
